Main features:

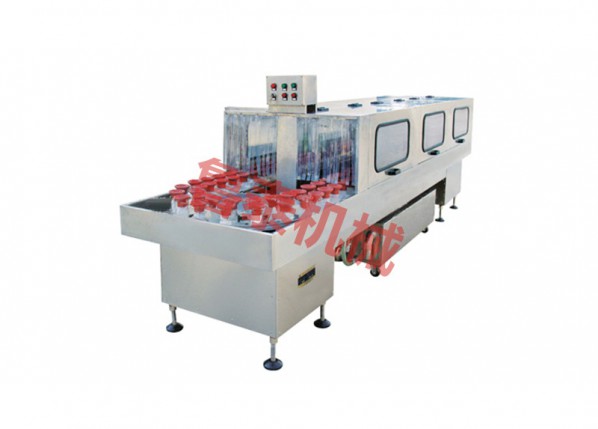

This series of models are mainly used for the washing of glass bottles and PET bottles. It is suitable for washing bottles before bottling.

(1) the use of elastic and strong mechanical hand grasping bottles, bottles, bottles, empty bottles, flip reset, bottle out process, to achieve a fully automated production.

(2) the continuous tracking type bottle washing machine has the advantages of large bottle washing force, long time, good flushing effect, and stable and reliable whole machine operation.

(3) 40 head, 60 head machine adopts double channel bottle washing, flushing on the basis of an increase of sterile air spray process, driven by mechanical hand bottle flushing (gas) tube into the bottle, the high-pressure water rinse after 2 seconds and then converted to a little empty sterile compressed air spray, dry bottle the residual water drainage, flushing nozzle automatically inserted into the bottle in the bottle of 110mm, to ensure that the inner wall of the bottle bottom of the bottle without water, washing effect is just perfect.

(4) punching machinery bottle machine hand adopts stamping, casting, making use of 304 GB stainless steel material, with straight tooth gear transition clamping form, the clip bottle, bottle, bottle turn steady freely, make the equipment to realize high speed, high quality and high efficiency. The guide rail, slide block, pinion and roller adopt high quality POM (imported OPOM25% reinforced) material, which is wearable, practical, material purity guaranteed and long service life of parts. The material is not affected by the change of temperature, the deformation coefficient is small, and the shrinkage ratio in the range of -20 DEG C and ~35 DEG C is small, and can meet the requirement of the equipment.

(5) only need to move up or down button to replace the bottle type, the equipment manipulator height with the height of bottles and mix thoroughly, replacing the star wheel device is convenient to apply different types of bottles.

Main technical parameters:

Model QSP-16 QSP-30 QSP-40 QSP-60

Production capacity of 3000 bottles / hour, 6000 bottles / hour, 8000-10000 bottles / hour, 15000 bottles / hour

Suitable for storage battery =50~100mm H=220-350mm

Motor power 0.75kw, 2.2kW, 3KW, 4kw

Outline dimensions 1400x1400x2200mm, 1800x2000x2200mm, 2200x2500x2200mm, 2450x2700x2200mm
